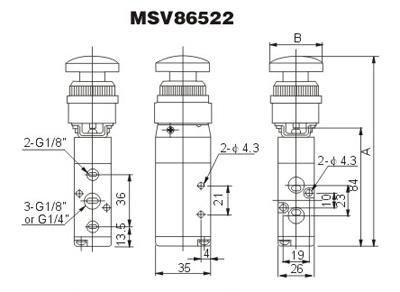

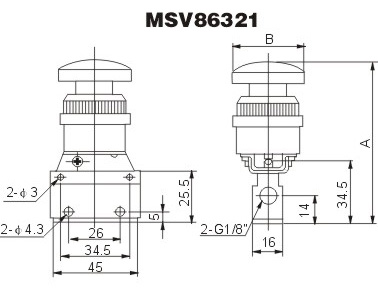

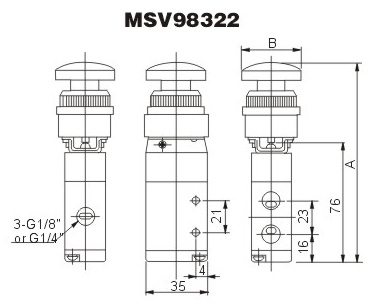

Ordering Code Specification   Model MSV86321 MSV86522 MSV98322 Working Medium 40 Micron Filtered Air Position and Way No. Two-position Three-way Two-position Five-way Two position Three-way Effective Section Area 12mm 2(CV=0.67) 16mm 2(CV=0.89) 16mm 2(CV=0.89) Port Size G1/8" G1/4" G1/4" pressure Range 0~0.8Mpa Temperature Range 0~60℃ Overall Dimensions Dimension Sheet Series Symbol/Model PP PPL LB TB EB PB R MSV86522 A 114 119 133 136.5 134 131 107.5 B 39.5 24.5 26.5 36.5 39.5 37.5 42.5 MSV98322 A 106 111 125 129.5 126 123 99.5 B 39.5 24.5 26.5 36.5 39.5 37.5 42.5 MSV86321 A 66 71 85 88.5 86 83 59.5 B 39.5 24.5 26.5 36.5 39.5 37.5 42.5
