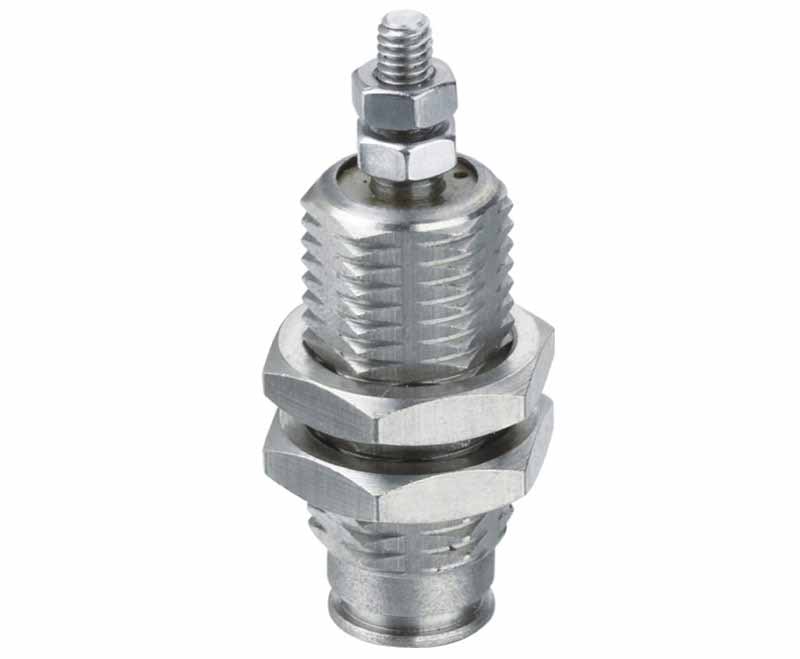

CJP Series needle cylinder

CJP Series needle cylinder

Working Medium	Air
Ensured Pressure Resistance	10.5kgf/cm2(1.05Mpa)
Max.pressure	7kgf/cm2(0.7Mpa)
Operating Temperature Range	5~+60℃
Buffering	NO
Port size	M5×0.8(Panel mount Type )

+ Sub-series

DNC Series standard cylinder(ISO6431)

DNG Series Standard cylinder(ISO15552)

SI Series standard cylinder(ISO6431)

SC/SU Series standard cylinder

MB Series standard cylinder(Japan Standard)

CA1 Series standard cylinder

MA6432 Series mini cylinder

MA Series mini cylinder

MAL Series mini cylinder

CM2 Series mini cylinder

CJ2 Series mini cylinder

SDA Series thin type cylinder

ADVU Series compact cylinder

CQ2 Series compact cylinder

CU Series free installation Cylinder

TN Series double-shaft cylinder

CXS Series double-shaft

STM Series slide cylinder

MGP Series three-shaft cylinder

RSQ Series stopper cylinder

XCK Series Clamping cylinder

MSQ Series rotary cylinder

XHZ2/XHC2 Series pneumatic gripper

XHL2 Series pneumatic gripper

XHT2 Series pneumatic type

CY1 Series rodless cylinder

Special cylinder

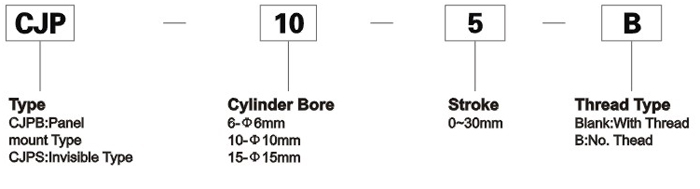

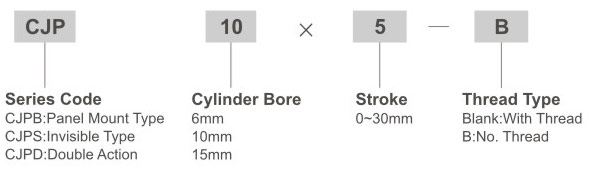

Ordering Code

Specification

Bore(mm)	6	10	15
Working Medium	Air
Motion Pattern	Double action / Single Action(Drawing-in Type)
Ensured Pressure Resistance	10.5kgf/cm2(1.05Mpa)
Max.pressure	7kgf/cm2(0.7Mpa)
Min.pressure	2kgf/cm2(0.2Mpa)	1.5kgf/cm2(0.15Mpa)
Operating Temperature Range	5~+60℃
Buffering	无 /NO
Margin of Stroke Error(mm)	+1.0 0
Port size	M5×0.8(Panel mount Type )

Overall Dimensions

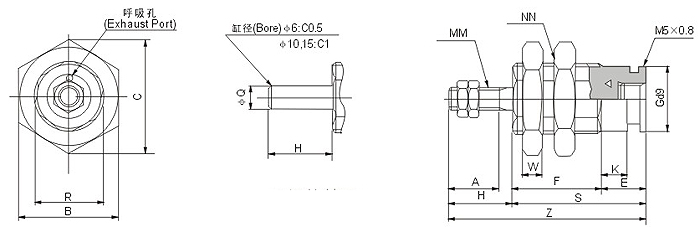

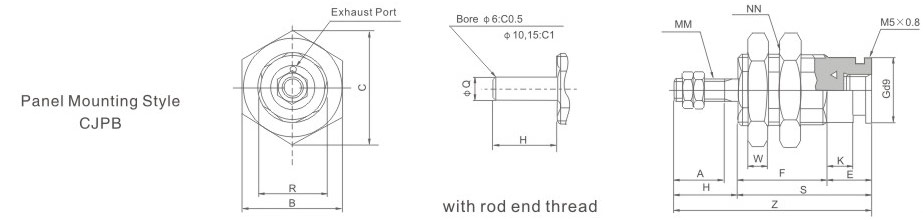

Overall dimension-panel mounting style-CJPB

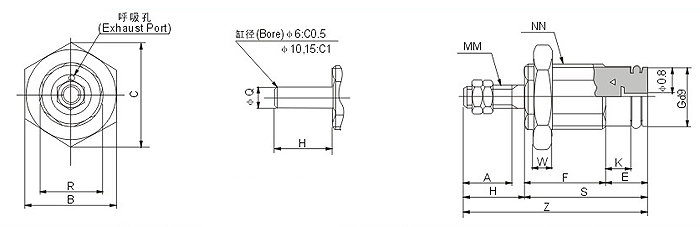

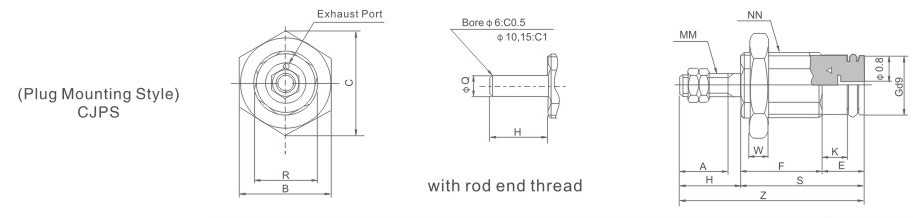

(panel-mounting-style)CJPS

Dimensions sheet

Bore(mm)	A	B	C	E	F			φG	H	K	MM	NN	R	S			W	Z			Q
Bore(mm)	A	B	C	E	5st	10st	15st	φG	H	K	MM	NN	R	5st	10st	15st	W	5st	10st	15st	Q
6	7	12	13.9	6	12.5	19.5	26.5	8.5	9	3.5	M3×0.5	M10×1.0	9	18.5	22.5	32.5	3	27.5	34.5	41.5	3
10	10	19	22	6	14.5	21	28	12	12	3.5	M4×0.7	M15×1.5	13	20.5	27	34	4	32.5	39	46	5
15	12	27	31	7	16.5	22.5	29	19	14	4.2	M5×0.8	M22×1.5	20	23.5	29.5	36	5	37.5	43.5	50	6

Bore(mm)	A	B	C	E	F			φG	H	K	MM	NN	R	S			W	Z			Q
Bore(mm)	A	B	C	E	5st	10st	15st	φG	H	K	MM	NN	R	5st	10st	15st	W	5st	10st	15st	Q
6	7	12	13.9	6	12.5	19.5	26.5	8.5	9	3.5	M3×0.5	M10×1.0	9	18.5	22.5	32.5	3	27.5	34.5	41.5	3
10	10	19	22	6	14.5	21	28	12	12	3.5	M4×0.7	M15×1.5	13	20.5	27	34	4	32.5	39	46	5
15	12	27	31	7	16.5	22.5	29	19	14	4.2	M5×0.8	M22×1.5	20	23.5	29.5	36	5	37.5	43.5	50	6
