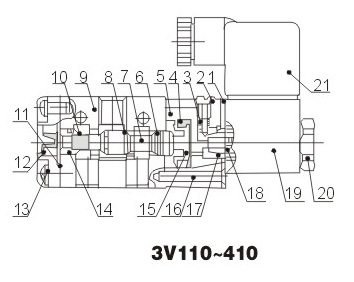

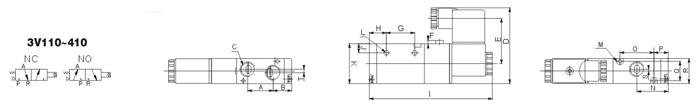

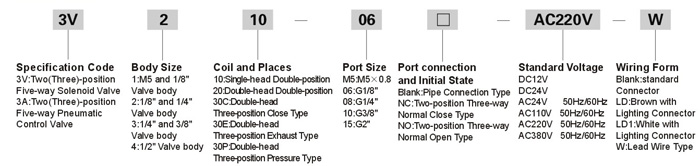

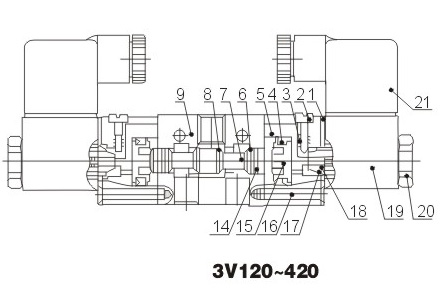

Ordering Code Specification   Model 3V110~410 3V120~420 3A110~410 3A120~420 Position and Way NO. Two-position Three-way Working Medium 40 Micron Filtered Air Motion Pattern Inner Guide Type Working-Pressure 0.15~0.8MPa Max.Pressure Resistance 1.2MPa Operating Temperature 5~50℃ Voltage Range ±10% Power Consumption AC:4.5VA DC:3W Insulation & Protection Class F CIass.IP65 Electrical entry Lead Wire or Connector type Highest Action Frequency 5 Cycle / Second Response time 0.05 Second Overall Dimensions Dimension Sheet-3V110~410 Model A B C D E F G H I J K L M N O P Q R S T 3V110-M5 16 14 3-M5 53.5 32.5 2.5 21 12 85.8 7.7 27 2-Φ 3.3 2-Φ 3.3 23 19 12.5 13 18 / / 3V110-06 16 14 3-G1/8" 53.5 32.5 2.5 21 12 85.8 7.7 27 2-Φ 3.3 2-Φ3.3 23 19 12.5 13 18 1 1 3V210-06 18 21 3-G1/8" 66.5 40 3 25 15 111.5 8 35 2-Φ 3.3 2-Φ3.2 31 33 12.5 17 22 1.5 1.5 3V210-08 18 21 3-G1/4" 66.5 40 3 25 15 111.5 8 35 2-Φ 3.3 2-Φ3.2 31 33 12.5 17 22 1.5 1.5 3V310-08 24 20.5 3-G1/4" 69 40 2.4 30 17.5 119.5 10.5 40 2-Φ 4.3 2-Φ4.3 32.5 35 15 20 27 / / 3V310-10 24 20.5 3-G3/8" 69 40 2.4 30 17.5 119.4 10.5 40 2-Φ 4.3 2-Φ4.3 32.5 35 15 20 27 / / 3V410-15 31.5 25.5 3-G1/4" 74 / / 51 15.5 137 115 50 2-Φ 4.3 2-Φ4.3 41.5 / / / / 2 2   Other Info Internal structure NO Designation NO Designation NO Designation 1 Washer 8 O-Ring 15 Piston 2 Pin 9 Body 16 Screw 3 Spring 10 Spring 17 O-Ring 4 O-Ring 11 Seal 18 Active Amature 5 Body 12 End Cap 19 Coil 6 O-Ring 13 Screw 20 Nut 7 Spool 14 Wearing 21 Connector
