XOU Series Air Source Treatment Unit

:0086-574-27830006 27830026

:0086-574-87303358

:0086-13777099669

:Fiona Zhou

:sales@china-xcpc.com

:Daao industry zone Xikou town Ningbo City,zhejiang,Province

yina-zhou@hotmail.com

xcpcfiona

SID Series Two Axis cylinder

Pneumatic cylinder

Motion Pattern	Double Action
Working Medium	Air
Working Pressure Range	0.1~0.9MPa
Operating Speed Range	50~800mm/s
Buffer Type	Adjustable Buffer

+ Sub-series

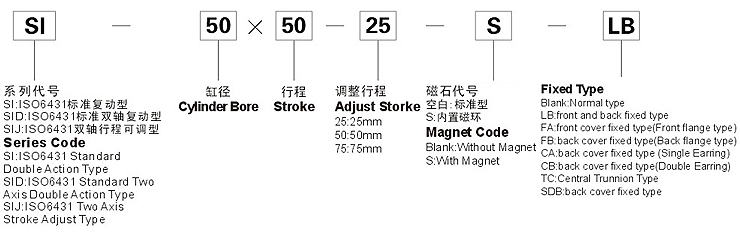

Ordering Code

Specification

Bore(mm)	32	40	50	63	80	100	125	160	200	250	320
Motion Pattern	Double Action
Working Medium	Air
Fixed Type	Normal type FA/Type FB/Type CA/Type CB/Type SDB/Type LB/Type TC/Type
Working Pressure Range	0.1~0.9MPa
Ensured Pressure Resistance	1.35MPa
Operating Temperature Range	-5~70℃
Operating Speed Range	50~800mm/s
Buffer Type	Adjustable Buffer
Buffer Stroke	24						32			42	33
Port Size	G1/8"	G1/4"		G3/8"		G1/2"		G3/4"		G1"

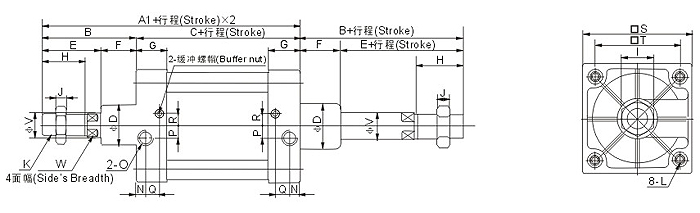

Overall Dimensions

dimension sheet

Bore/Symbol	A	A1	A2	B	C	D	E	F	G	H	I	J	K	L
32	142	190	187	48	94	30	28	16	27.5	22	17	6	M10×1.25	M6
40	159	213	207	54	105	35	32	18	29	24	19	7	M12×1.25	M6
50	175	244	233	69	105	40	42	25	30	32	24	8	M16×1.5	M8
63	190	259	250	69	120	40	40	24	31.5	32	24	8	M16×1.5	M8
80	214	300	286	86	128	40	53	30	35.5	40	30	10	M20×1.5	M10
100	229	320	308	91	138	45	55	32	36	40	30	10	M20×1.5	M10
125	279	398	372.5	119	160	60	74	45	46	54	41	13.5	M27×2	M12
160	332	484	448	152	180	65	94	58	50	72	55	18	M36×2	M16
200	337	514	472	157	180	75	100	57	50	72	55	18	M36×2	M16

Bore/Symbol	N	O	P	Q	R	S	T	V	W	Z
32	13.5	G1/8"	4	7.5	7	47	32.5	12	10	21
40	16	G1/4"	6	8.5	9	53	38	16	13	21
50	15.5	G1/4"	8.5	7.5	7.5	65	46.5	20	17	23
63	16.5	G3/8"	7.5	8.5	9	75	56.5	20	17	23
80	16.5	G3/8"	11	8.5	13.5	95	72	25	22	29
100	18.5	G1/2"	13.5	9.5	14.5	115	89	25	22	29
125	23	G1/2"	14	12	14	140	110	32	27	35
160	25	G3/4"	15	12	20	180	140	40	36	40
200	25	G3/4	15	12	20	220	175	40	36	40

Other Info

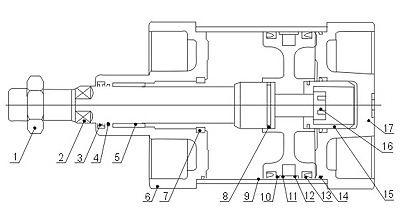

Structure

NO.	Designation
1	Piston Rod Nut
3	Front cover seal ring
5	Bearing
7	Buffering O-Ring
9	Barrel
11	Wear Ring
13	Pistion O-Ring
15	Damping
17	Back cover

NO.	Designation
2	Piston Rod
4	O-Ring
6	Front cover
8	Piston rod O-Ring
10	Piston
12	Magnet(Optional)
14	Pipe wall O-Ring
16	Hex socket screw

Strock

Bore(mm)	Standard Stroke	Max.Stroke	Permissible Stroke
32	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500	1000	2000
40	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800	1200	2000
50	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1200	2000
63	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
80	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
100	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
125	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
160	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000
200	25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 600 700 800 900 1000	1500	2000

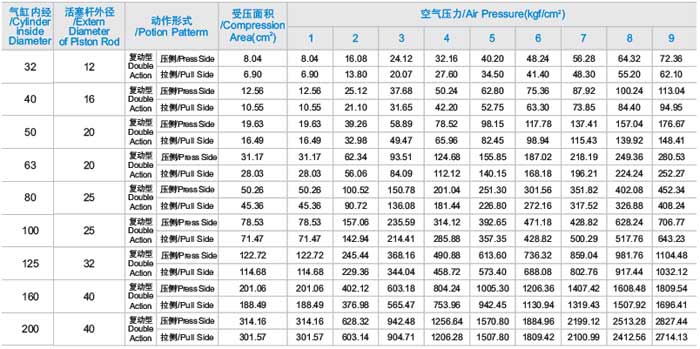

Cilinder theory output
