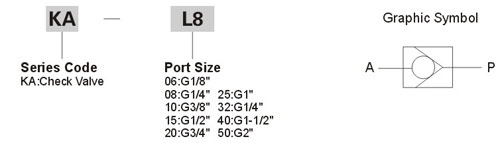

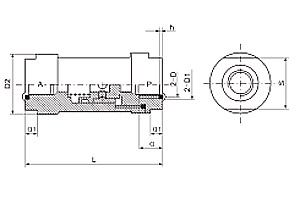

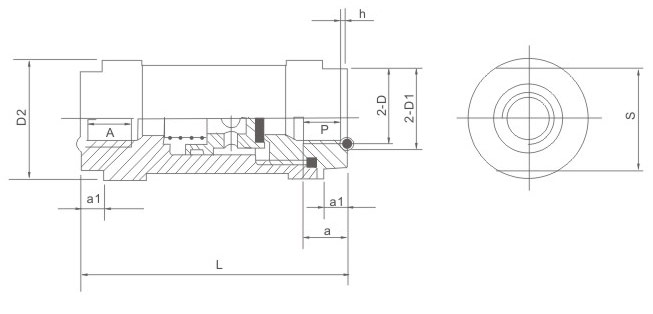

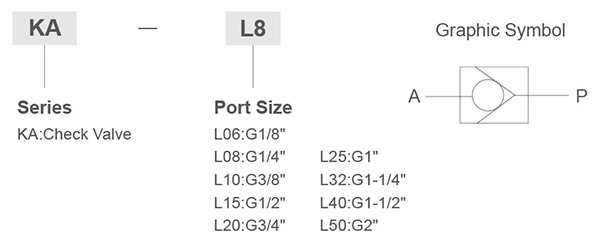

Ordering Code Specification   Model KA-06 KA-08 KA-10 KA-15 KA-20 KA-25 KA-32 KA-40 KA-50 Working-Pressure 0.05~0.8MPa Entironment Temperature -10~+55℃ Medium Temperature 0~+55℃ Circulating 10 20 40 60 110 190 300 400 650 Startup Ability ≤0.03MPa Leak Out Flow(cm3/min) 50 50 120 120 250 250 500 500 500 Respond Time (Sec) 0.03 Life(Ten thousand Times) ≥150 Overall Dimensions   Model Joint Pipe Code D D1 D2 S L a a1 h KA-L3 3 M6×1 Φ9 Φ12 12 36 6 5 1.4o -0.1 KA-L6 6 G1/8 M10×1 Φ13 Φ28 24 64 10 6 1.4o -0.1 KA-L8 8 G1/4 M12×1.5 Φ16 Φ28 24 64 12 6 1.4o -0.1 KA-L10 10 G3/8 M16×1.5 Φ20 Φ40 36 86 14 10 1.8o -0.1 KA-L15 15 G1/2 M20×1.5 Φ26 Φ40 36 86 14 10 1.8o -0.1 KA-L20 20 G3/4 M27×2 Φ32 Φ55 46 112 21 12 1.8o -0.1 KA-L25 25 G1 M33×2 Φ40 Φ55 46 112 23 12 2.7o -0.12 KA-L32 32 G1/4 M42×2 Φ48 Φ88 75 161 25 22 2.7o -0.12 KA-L40 40 G1/8 M48×2 Φ54 Φ88 75 161 26 26 2.7o -0.12 KA-L50 50 G1/8 M60×2 Φ70 Φ100 90 95 26 26 4.5o -0.18
